parameterindexRated working voltageAC400V 50HZFrame current100ARated operating short circuit breaking capacitylcs(A)Ics=Icu=6000AProduct protection levelIP20Working temperature-25-70℃Leakage protection setting value setting30, 50, 100, 300, 500mA can be setCurrent overload protection1-100AOvervoltage protection250-350V can be setUnder voltage protection110-200V configurab...

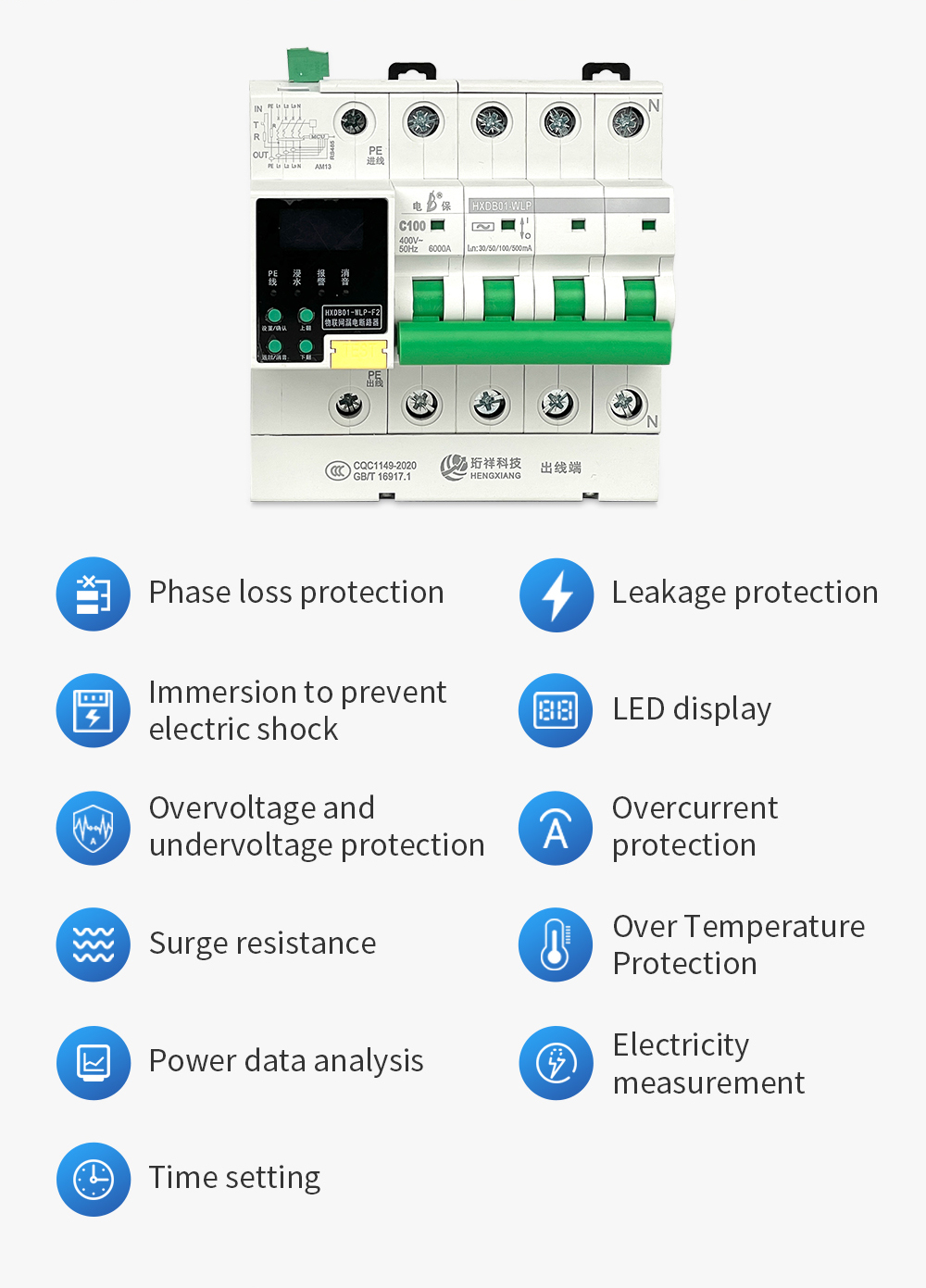

Phase loss protection
Immersion to prevent electric shock
Overvoltage and undervoltage protection
surge resistance
Power data analysis
Time setting

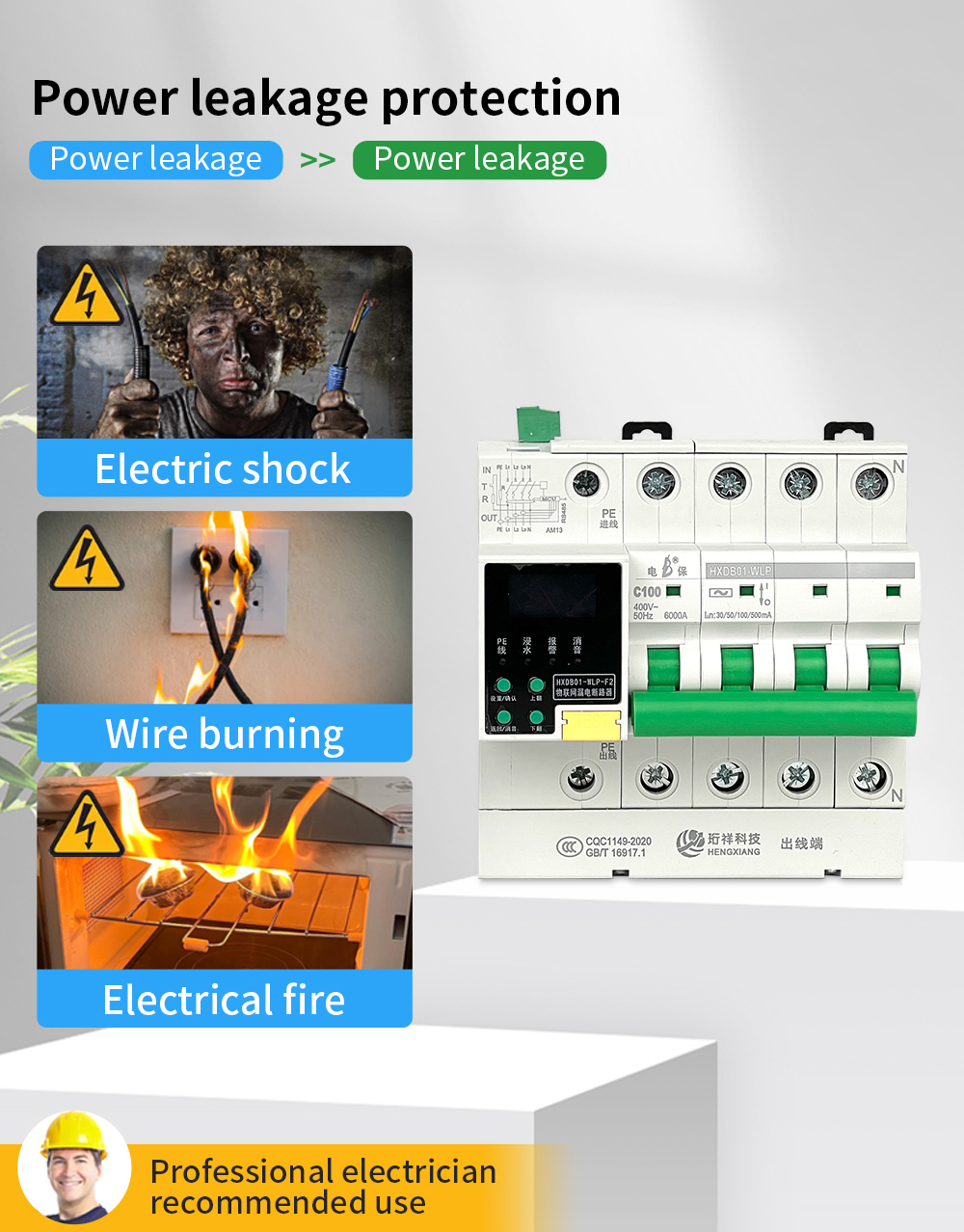

Leakage protection
LED display
Overcurrent protection
Over Temperature Protection
Electricity measurement
parameter | index |
Rated working voltage | AC400V 50HZ |
Frame current | 100A |
Rated operating short circuit breaking capacity lcs(A) | Ics=Icu=6000A |
Product protection level | IP20 |
Working temperature | -25-70℃ |
Leakage protection setting value setting | 30, 50, 100, 300, 500mA can be set |
Current overload protection | 1-100A |
Overvoltage protection | 250-350V can be set |
Under voltage protection | 110-200V configurable |
Over temperature protection | 60-100℃ can be set |
Leakage protection action | 0.04s |
Short circuit protection action | 0.03s |
Water immersion protection | Trip protection setting after 10-600S after immersion in water |
communication method | RS485 |
