Ratedworking voltage380VAC 50HZRated current shell frame class100AShort circuitsegmentation capabilityIcs=Icu=6000AProductprotection classIP20Operating ambient temperature-40-70°CLeakage protection setting30/50/100/300/500mA configurableCurrent overload protection32A(10-32)Asettable、63A(10-63)settable、100A(10-100)AsettableOvervoltage protection250-350V settableUnderv...
With information SMS, telephone, wechat push (connected to the gateway), platform push function

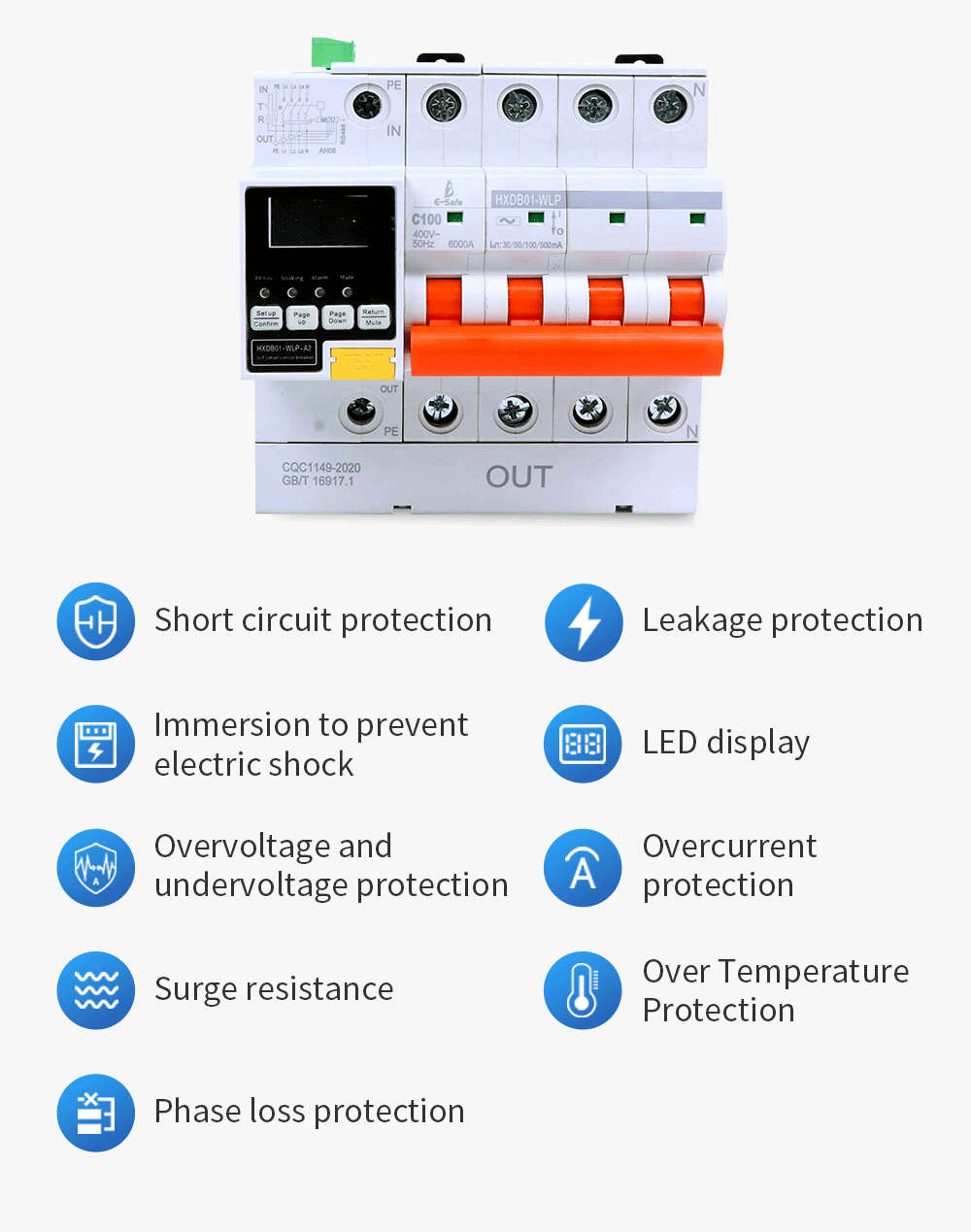

Earth leakage protection
Over temperature protection
Overload protection
Short circuit protection
Electricity metering
Over/under voltage protection
Anti-surge
Water immersion protection
Power factor analysis
Three-phase balance analysis
Remote gate splitting

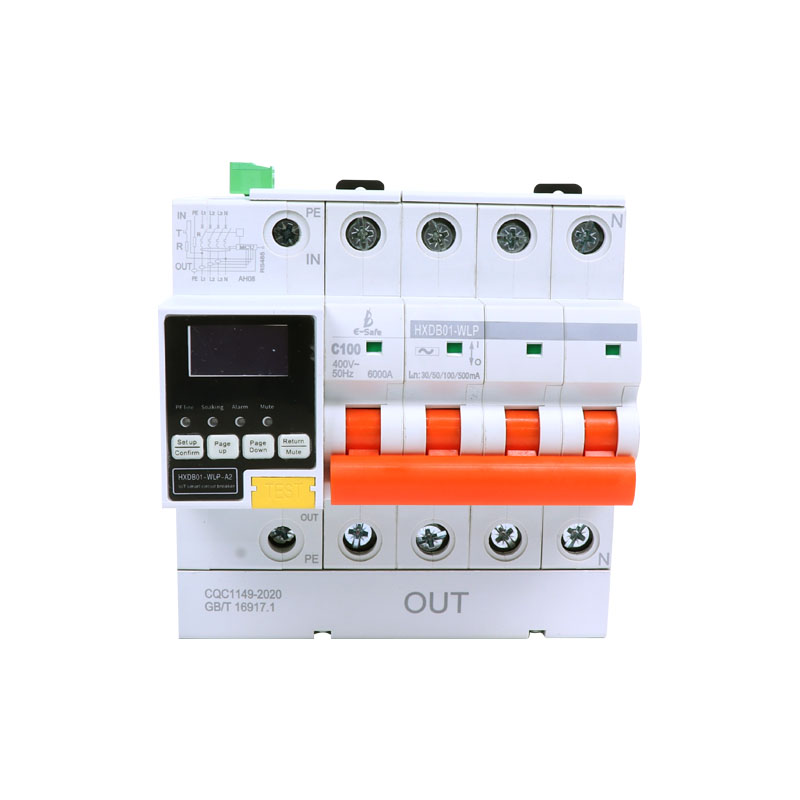

Rated working voltage | 380VAC 50HZ |
Rated current shell frame class | 100A |
Short circuit segmentation capability | Ics=Icu=6000A |
Product protection class | IP20 |
Operating ambient temperature | -40-70°C |
Leakage protection setting | 30/50/100/300/500mA configurable |
Current overload protection | 32A(10-32)Asettable、63A(10-63)settable、100A(10-100)Asettable |
Overvoltage protection | 250-350V settable |
Undervoltage protection | 110-200V settable |
Over temperature protection | 60-120°C settable |
Earth leakage protection action | 0.04s |
Short circuit protection action | 0.03s |
Water immersion protection | Trip protection setting after 10-990S of water immersion |
Communication methods | RS485 |
