parameterindexRated working voltageAC400V 50HZFrame current100ARated operating short circuit breaking capacitylcs(A)Ics=Icu=6000AProduct protection levelIP20Working temperature-25-70℃Leakage protection setting value30mARated current32A\63A\80A\100A(optional)Overvoltage protection275VUnder voltage protection165VLeakage protection action0.1sShort circuit protection act...

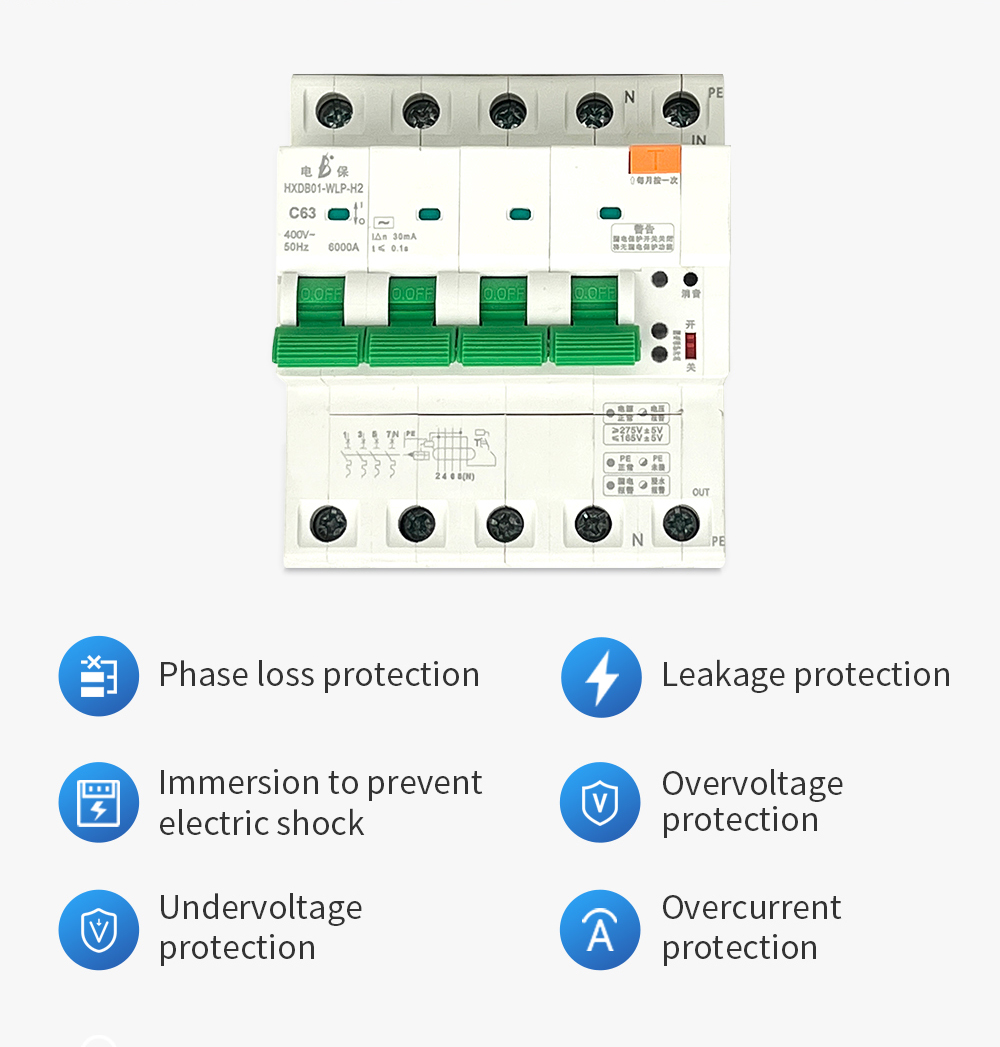

Phase loss protection
overvoltage protection
Immersion to prevent electric shock
Overcurrent protection

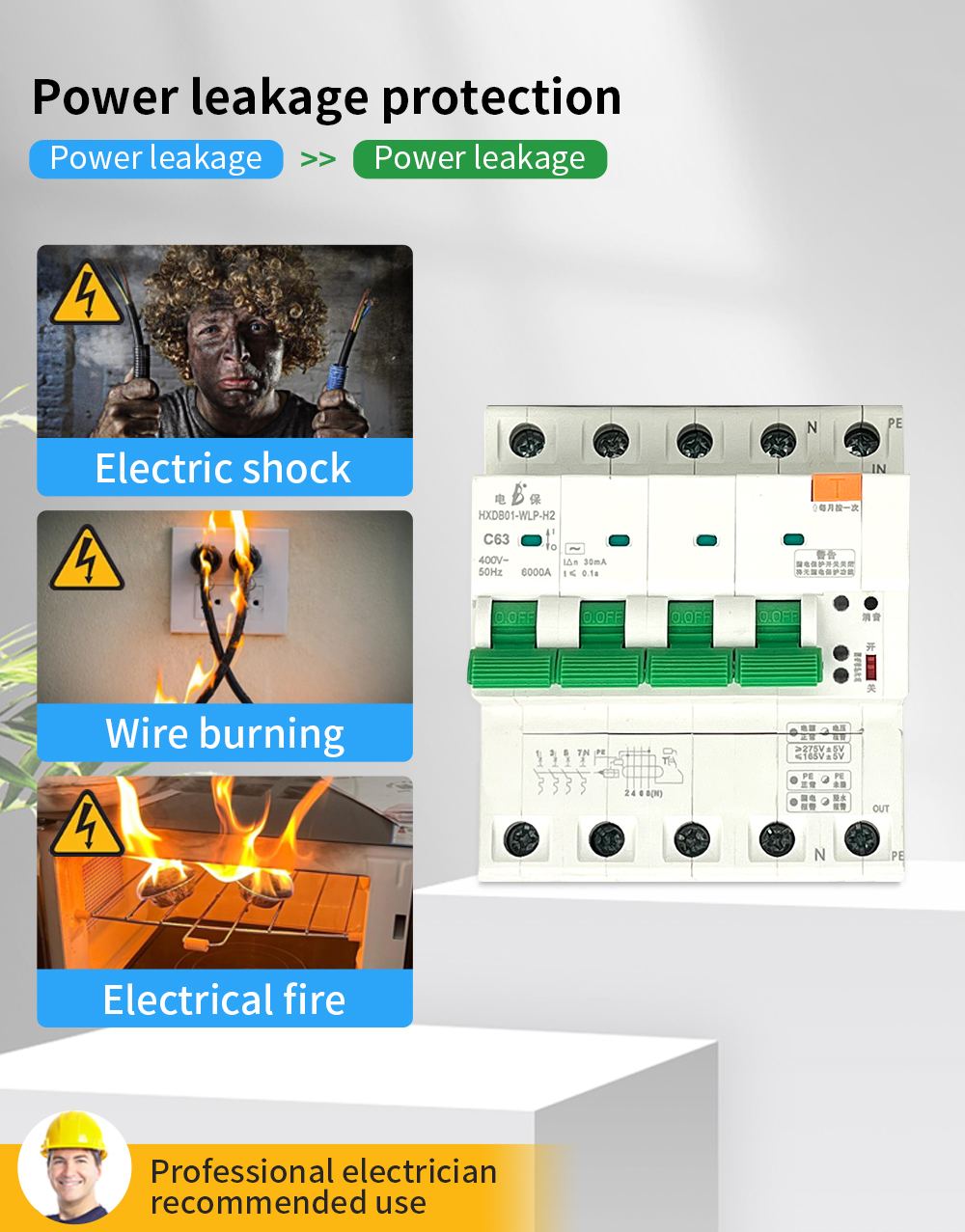

Leakage protection
Undervoltage protection
parameter | index |
Rated working voltage | AC400V 50HZ |
Frame current | 100A |
Rated operating short circuit breaking capacity lcs(A) | Ics=Icu=6000A |
Product protection level | IP20 |
Working temperature | -25-70℃ |
Leakage protection setting value | 30mA |
Rated current | 32A\63A\80A\100A(optional) |
Overvoltage protection | 275V |
Under voltage protection | 165V |
Leakage protection action | 0.1s |
Short circuit protection action | 0.01s |
Water immersion protection | Trip protection setting 30S after immersion in water |
Phase loss protection | If any one or two phases are missing, the circuit breaker will be shut down for protection. |
